Peak Output Power 4 kW
Type 460 mm (19″) radome
Frequency 9410 MHz ± 30 MHz
Beam Width (Horizontal) 5.2°
Beam Width (Vertical) 25°
Range Scales 0.0625 – 36 NM
Minimum Range 25 m
Antenna Rotation Speed 24 rpm
Weight 6.5 kg 14.3 lb

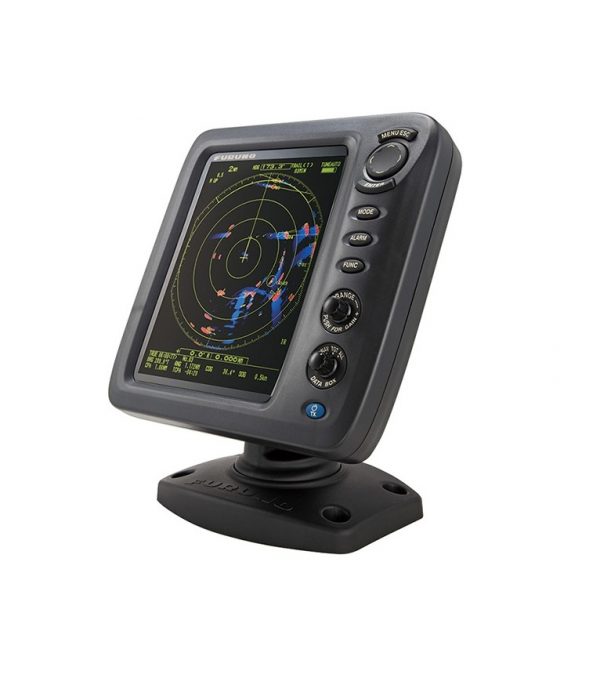

Display Unit 8.4″Color LCD
Display Mode Head-up, Course-up,North-up,True view,True motion Heading data required Heading data and position data required
Other Mode/Functions Fast Target Tracking (TT),AIS,Echo Trails
Weight Bracket mount:2.2 kg 4.9 lb Flush mount:1.6 kg 3.5 lb
Temperature Antenna unit:-25°C to +55°C Processor unit: -15°C to +55°C
Waterproofing Antenna unit:IPX6 Display unit: IP56
Power Supply/Consumption Current 12-24 VDC, 3.2-1.6 A
| Peak Output Power | :4 kW |
| Type | :460 mm (19″) radome |
| Frequency | :9410 MHz ± 30 MHz |
| Beam Width (Horizontal) | :5.2° |
| Beam Width (Vertical) | :25° |
| Range Scales | :0.0625 – 36 NM |
| Minimum Range | :25 m |
| Antenna Rotation Speed | :24 rpm |
| Weight | :6.5 kg 14.3 lb |
| DISPLAY | |
| Display Unit | :8.4″ color LCD |
| Display Mode | :Head-up,Course-up,North-up,True view,True motion Heading data required Heading data and position data required |
| Other Mode / Functions | :Fast Target Tracking (TT),AIS,Echo Trails |
| Weight | :Bracket mount 2.2 kg 4.9 lb Flush mount 1.6 kg 3.5 lb |
| ENVIRONMENT | |
| Temperature | :Antenna unit -25°C to +55°C Processor unit -15°C to +55°C |
| Waterproofing | :Antenna unit IPX6 Display unit IP56 |
| POWER SUPPLY | |
| Power Supply / Consumption Current | :12-24 VDC,3.2-1.6 A |
